- 1x TT 150 Inline Fan (EXVUTT150) Click to view fan Specs
- 2 x Internal Plastic Vent Cone 150 mm (EVFLC150)
- 1 x External Vent 150 mm (EVVUFS150)
- 1 x Back draft shutter 150 mm(EABDP150VU)
- 1 x 6m Flexible Duct 150mm (EDNU1506MF)
- 1 x T Junction (EAVUTJ150P)
- 1 x Duct tape(EATAPED)
- Lead and Plug. Lead and plug will be connected to high speed. To use with optional speed controller, lead and plug will need to be removed so the fan can be hard wired.
Motor Capacity: 520 m3/hr (144.5 l/s)
Motor Type: Mixflow

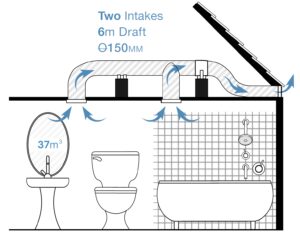

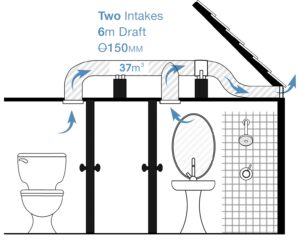

The graphic below is an example (not to scale) to demonstrate an effective use of this kit. The 2 Intake system can be used either in one large room requiring 2 intakes or in 2 separate adjacent rooms with 1 intake each connecting to the same fan. Examples of this are shown below.
