187m3/hr
TT Mixflow Inline Fan 100
$99.00
This Fanco TT mixflow 100 inline fan is a quality inline fan that is typically ducted. It is usually used for exhaust, air transfer and other applications where mechanical ventilation is required.
| Manufacturers Part Number | EXVUTT100 |
|---|---|
| Colour | White |
| Capacity (m3/hr) | 0187 m3/hr |
| Capacity (l/s) | 51.9 l/s |
| Motor Wattage | 028w |
| Current | 0.11A |
| Noise Level | 36 dB(A) |
| IP Rating | IPX4 |
| Duct Size | 100mm |
| Material | Plastic |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Fanco |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

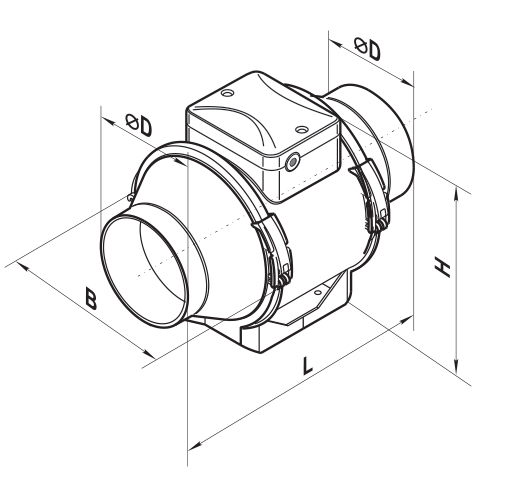

Dimensions
| D | B | L | H |
| 100mm | 140mm | 246mm | 190mm |

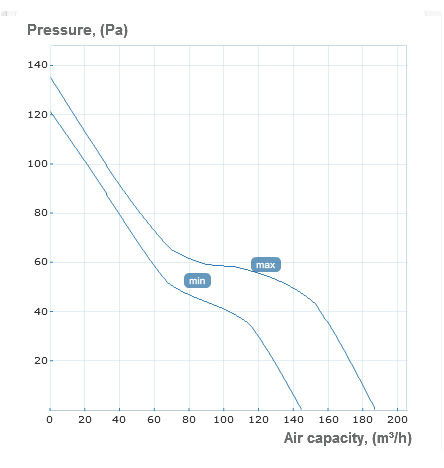

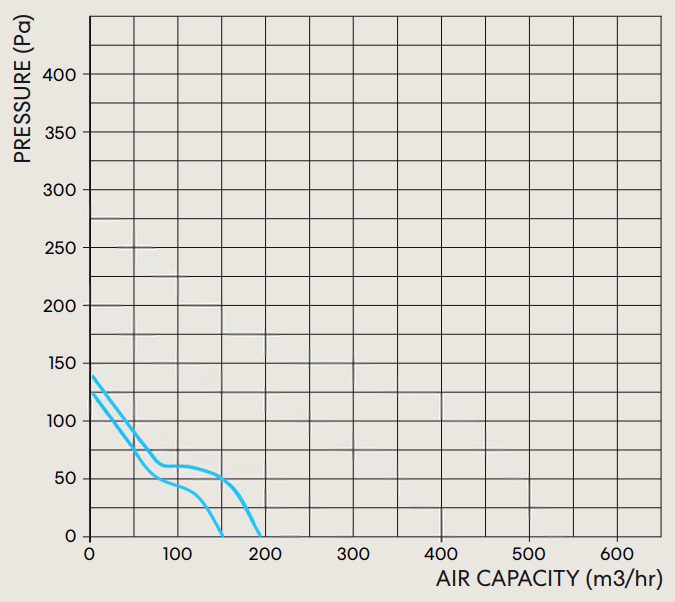

Pressure Curve
