710m3/hr
Elicent Mini Centrifugal Roof Fan – Motor Only 160
$319.00
The Elicent MRF 160 Mini Roof Fan is a versatile and robust range of centrifugal roof extract units available in 6 sizes and suitable for vertical installation. Designed to be mounted directly to standard PVC plumbing pipes and fittings.
Elicent MRF Range Data Sheet—–
CUSTOMER NOTICE – This product is currently out of stock & not available for purchase. If you need some advice on alternatives please contact us.
—–
| Manufacturers Part Number | MRF 160 |
|---|---|
| Colour | Grey |
| Capacity (m3/hr) | 0710 m3/hr |
| Capacity (l/s) | 197.22 l/s |
| Current | 0.48A |
| Noise Level | 54 dB(A) |
| IP Rating | IPX5 |
| Duct Size | 160mm |
| Material | Metal |
| Installation | This fan requires hardwiring by an electrician |
| Manufacturer | Elicent |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply) |
| General Exhaust Fan Advice | It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan. |

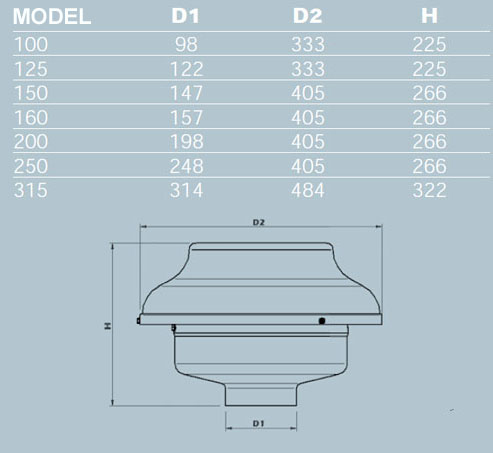

Dimensions

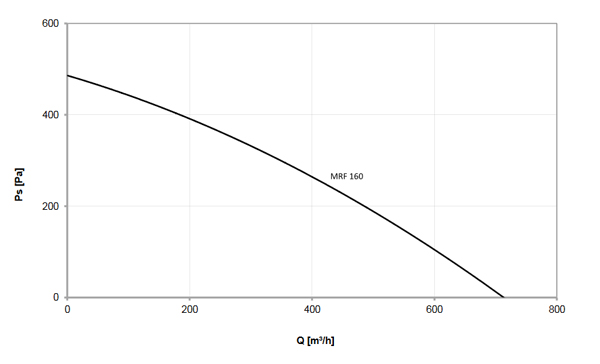

Pressure Curve
